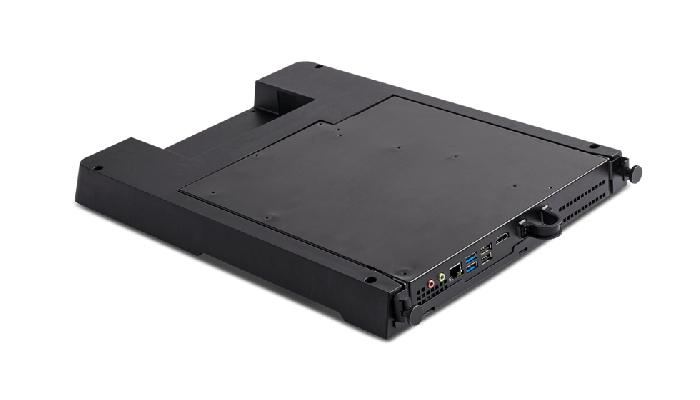

Windows 7 Computer Modules (ECMG3) - for IDS 02-Series (Discontinued October 2019)

Merkmale

• Technische

  ---

  Artikelnummer(n)

  i3-6100 ECMG3 - Windows 7 - Elo P/N: E400775
  i5-6500 ECMG3 - Windows 7 - Elo P/N: E401365
  i7-6700 ECMG3 - Windows 7 (with vPro) - Elo P/N: E401962

  Compatible with
  3202L TouchPro and IR
  4202L TouchPro and IR
  4602L TouchPro and IR
  5502L TouchPro and IR
  5551L IR
  7001LT IR

  Gehäusefarbe

  Schwarz

  Prozessor

  Intel Core i3-6100 Processor:
  (3M Cache, 3.70 GHz)
  3 MB Intel Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Intel Core i5-6500 Processor:
  (6M Cache, up to 3.60 GHz)
  6 MB Intel Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Intel Core i7-6700 Processor (vPro):
  (8M Cache, up to 4.00 GHz)
  8 MB Intel® Smart Cache
  8 GT/s Direct Media
  Interface 3 (DMI3)

  Chipsatz

  i3 & i5: Intel H110 Chipset
  i7: Intel Q170 Chipset

  Grafik

  Intel HD Graphics 530

  BIOS

  AMI

  Arbeitsspeicher (RAM)

  i3 & i5: 4 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  i5 Model (E458919): 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  i7: 8 GB DDR4-2400 MHz SO-DIMM on 1 of 2 slots (Expandable to 32 GB maximum* on 2 slots)

  *Maximum memory using 2 slots.

  Speicher

  128 GB 2.5” SATA Solid State Drive (SSD)

  i5 Model (E458919) / i7 Model (E459109) - 256 GB 2.5” SATA Solid State Drive (SSD)

  GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

  Max./Steckplatz

  Expandable up to 16GB maximum, SO-DIMM DDR4-2400 per slot

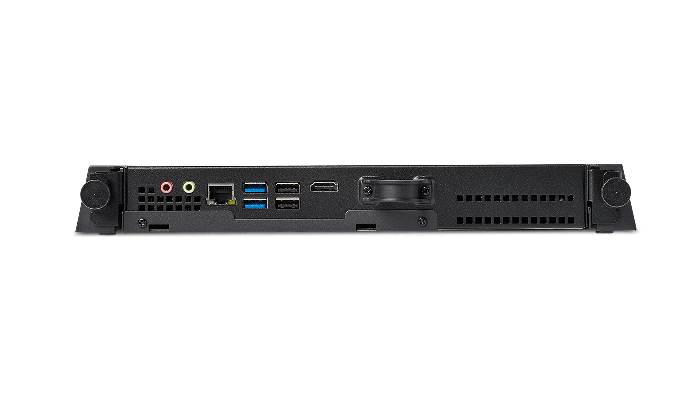

  USB-Ports

  i3 & i5: 2 x USB 2.0 Type A, 2 x USB 3.0 Type A
  i7: 4 x USB 3.0 Type A

  Ethernet-Port

  1 x LAN RJ45

  Audio-Ports

  1 x 3.5 mm Line out
  1 x 3.5 mm MIC in

  Videoausgang (Video Out)

  1 x HDMI (UHD capable)

  Betriebssystem

  Windows Pro 7*

  Betriebssystemsprachen

  Windows 7: 35 language groups: Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional), Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew, Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian

  Stromversorgung

  Internal power supply module included

  Abmessungen

  power module + computer module: 11.81” x 16.85” x 1.46” / 300mm x 428mm x 37mm

  Versandabmessungen

  power module + computer module: 16.5” x 21.0” x 5.12” / 419 mm x 535mm x 130mm

  Gewicht (ohne Verpackung)

  6.88 lbs / 3.12kg

  Gewicht (mit Verpackung)

  10.47 lbs / 4.75 kg

  Betriebstemperatur

  0°C to 40°C / 32°F to 104°F

  Lagertemperatur

  -20°C to 60°C / -4°F to 140°F

  Feuchtigkeit

  Operating: 20% to 80%
  Storage: 5% to 90%

  Echtzeituhr

  Lithium-Ionen-Akku

  MTBF

  50.000 Stunden, nachgewiesen

  Zertifizierungen und Konformitätserklärungen

  UL/cUL, CB, FCC, CE, AS, NZS, VCCI

  Garantie

  3 Jahre

  Erweiterte Serviceoptionen

  4 year warranty coverage - Elo P/N: E896120
  5 year warranty coverage - Elo P/N: E896322
  3 year warranty coverage + AUR - Elo P/N: E896699
  4 year warranty coverage + AUR - Elo P/N: E896903
  5 year warranty coverage + AUR - Elo P/N: E897104

  Im Lieferumfang enthalten

  Computer Module
  QIG
  Screws
  VESA Spacer for IDS02

  Optionale Produktabdeckung

  On Site Exchange included in Continental US only

  *Windows 7 Lizenz

  Select Windows 7 systems (excluding POS 7 systems) are preinstalled with Windows 7 and come with a license for Windows 10 at no additional charge. If your system has a Windows 10 license sticker, then your system includes this feature and, subject to the licensing terms for the Windows software, you may temporarily use the loaded Windows version before upgrading.
