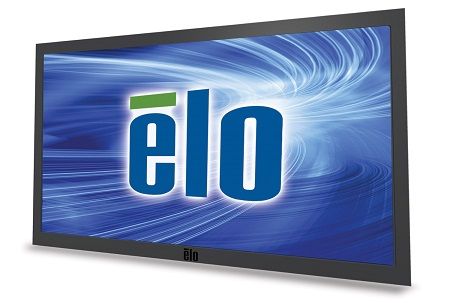

3209L 32" Interactive Digital Signage (Discontinued March 2016)
Overview
Elo's 3209L 32-inch full HD interactive digital signage touchscreen provides smooth dual-touch performance with IntelliTouch® Dual-Touch surface acoustic wave technology. The 3209L touchmonitor is 2.3-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hospitality, healthcare and other commercial markets. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. Narrow borders and a USB touch interface add to the versatility of the 3209L.
The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Other features.
- 1920 x 1080 full HD provides a bright, high contrast display with wide-view angle that easily attracts and holds the user attention.
- IntelliTouch Dual-Touch surface acoustic wave technology provides dual-touch performance.
- New sleek design: 2.3-inch total thickness; less than 1-inch borders; 13.2kg (29.17 lbs) total weight.
- LED backlighting reduces power consumption by 60% and generates less heat than traditional CCFL backlights.
- Commercial durability enabled with UL60950 ball drop glass compliance.
- Multiple mounting options are available.
- Worldwide agency approvals and a 3-year standard warranty.
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch Dual-Touch (USB, Clear, Worldwide) - E000732
IntelliTouch Dual-Touch (USB, Clear, Asia/Pacific) - E000733Gehäusefarbe
Dunkelgrau
Touchtechnologie & Leistung
SAW (IntelliTouch® akustische Oberflächenwelle) – Dual Touch
Bilddiagonale
32 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Aktiver Bereich
27.49" x 15.47" / 698.4 mm x 392.85 mm
Seitenverhältnis
16:9
Auflösung
1920 x 1080
Andere unterstützte Auflösungen
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024x768 at 60Hz
1280 x 720 at 60Hz
1280x960 at 60 Hz
1280x1024 at 60Hz
1360x768 at 60 Hz
1366x768 at 60 Hz
1440x900 at 60 Hz
1600x1200 at 60 Hz
1680x1050 at 60 Hz
1920x1080 at 60 HzBlickwinkel
Horizontal: ±89° oder 178° insgesamt / Vertikal: ±89° oder 178° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 350 nits
IntelliTouch Dual-Touch: 315 nitsReaktionszeit gesamt (typisch)
8 msec
Kontrastverhältnis
3000:1
Touch-Benutzerschnittstelle
USB: E000732, E000733
On-Screen-Display (OSD)
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages : English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts : OSD, PowerVideo-Eingangsformat
Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)
Video-Eingangssignalanschluss
Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only),
Female DVI-D Dual Link Connector (Asian model only)Stromversorgung
Internal AC
Eingangsanschluss
AC: IEC 60320 C14
Eingangsspannung
AC: 100-240 VAC, 50/60 Hz
Eingangsfrequenz
Horizontal: 31-80 kHz / Vertical: 47-63 Hz
Stromverbrauch (typisch)
ON (monitor + AC/DC adapter): 55W
SLEEP (monitor + AC/DC adapter): 1.4W
OFF (monitor + AC/DC adapter): 0.3WAbmessungen
29.5" x 18" x 2.3" / 749.4 mm x 456 mm x 59 mm
Versandabmessungen
39.05" x 26.45" x 11.65" / 992 mm x 672 mm x 296 mm
Gewicht (ohne Verpackung)
29.17 lbs / 13.2 kg
Gewicht (mit Verpackung)
43.53 lbs / 19.7 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20-80%
Storage: 10-90%
noncondensingMontageoptionen
400mm x 200mm VESA mount
Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
CB, UL, cUL, FCC, CE, VCCI, IC, C-TICK, S-Mark, CCC, Russia & CIS GOST, NOM, KC, BSMI Argentina S-Mark, Australia C-Tick, Canada CUL, IC, China CCC, Europe CE, Japan VCCI, Korea KC, KCC, e-Standby, Mexico CoC, Russia GOST, Taiwan BSMI, United States UL, FCC, International CB, RoHS, China RoHS, WEEE
IntelliTouch Plus screen: United States UL 60950 ball-drop compliant.Stromkabel
Cable Kit for Replacement Cables - E378229
Optional Accessories/Peripherals
IntelliTouch SAW Stylus pen with rubber tip - Elo p/n: D82064-000
Remote On-Screen Display (OSD) - Elo p/n: E483757
