2242L 22" Open Frame Touchscreen (Discontinued November 2014)
Overview

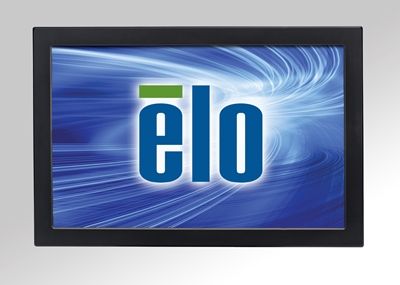

The Elo TouchSystems 2242L, a 22-inch open-frame touchmonitor with IntelliTouch Plus touch technology provides OEMs and design engineers the ability to develop multi-touch applications compatible with Microsoft Windows® 7 operating system for dynamic, reliable touch-enabled applications including graphically intense kiosk applications such as photo kiosks, gaming, concierge and other guest-engagement hospitality experiences. Gaming and hospitality environments present unique performance and durability requirements for touch screens and the Windows 7 operating system delivers distinct design advantages with its stable and innovative touch interface. The 2242L blends these market needs and OS-capabilities of Windows 7 to provide an increased range of touch options for these applications.
2242L Two-finger TouchUnique to the 2242L Windows 7 compatible touchmonitor is the use of Tyco Electronics IntelliTouch Plus which, unlike other multi-touch technologies, utilizes three axes of touch information to deliver sensitive, accurate, drift-free recordings of two simultaneous touch locations anywhere on the screen regardless of position or pressure applied. IntelliTouch Plus utilizes pure-glass construction to deliver excellent imagery, high light transmissions and is not affected by variations in ambient or extreme light. IntelliTouch Plus supports finger and soft stylus activation and features durable, scratch-resistant glass to assure continuous surface performance even if scratched.
IntelliTouch Plus SAW touch technology received Windows 7 Touch Additional Qualification (AQ) status for touch interactivity by meeting test criteria established by Microsoft for Windows 7. With this testing, customers can trust the 2242L, and the ability to effortlessly take advantage of the touch functionality built into Windows 7.
Features
- 22-inch, open-frame
- 16:10 aspect ratio
- Recognizes both two independent touch points and single- and two-finger gestures
- Clear glass surface for high image clarity
- Analog and DVI input video
- Side and rear-mounting options
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch DT (Clear) - E667969 (Worldwide)
Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
SAW (IntelliTouch® akustische Oberflächenwelle) – Dual Touch
Touch-Benutzerschnittstelle
USB
Bilddiagonale
22 zoll diagonal, Active-Matrix-TFT-LCD (LED)
On-Screen-Display (OSD)
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerSeitenverhältnis
16:10
Aktiver Bereich
18.7" x 11.7" / 474 mm x 296 mm
Auflösung
1680 x 1050 at 60 Hz
Andere unterstützte Auflösungen
720x350 at 70Hz
720x400 at 70Hz
640x480 at 60, 66, 72Hz
800x500 at 60, 75Hz
800x600 at 56, 60, 72Hz
832x624 at 75Hz
1024x768 at 60, 65, 72, 75Hz
1152 x 864 @ 75Hz
1280x768 at 65Hz
1280x968 at 60Hz
1280x1024 at 60, 75Hz
1360x768 at 60Hz
1366x768 at 60Hz
1440x900 at 60Hz
1600x1200 at 60Hz
1680x1050 at 60Hz, 75HzBlickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 300 nits
IntelliTouch DT: 270 nitsReaktionszeit gesamt (typisch)
5 msec
Kontrastverhältnis
1000:1
Video-Eingangsformat
Analog VGA, DVI-D
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type, DVI-D connector
Stromversorgung
Internal AC
Eingangsspannung
AC: 100-240VAC 50/60Hz
Eingangsanschluss
AC: IEC 60320 C6
Eingangsfrequenz
Horizontal: 30-75 kHz
Vertical: 53-76 HzStromverbrauch (typisch)
On: 100V/60Hz: 50W
Sleep: 100V/60Hz: 4W
Off: 100V/60Hz: 3.5WAbmessungen
21.1" x 14.2" x 3.0" / 537 mm x 360 mm x 77 mm
Versandabmessungen
27.17" x 10.04" x 20.87" / 690 mm x 255 mm x 530 mm
Gewicht (ohne Verpackung)
19.3 lbs / 8.75 kg
Gewicht (mit Verpackung)
28.7 lbs / 13.0 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 50°C / -4°F to 122°F
Feuchtigkeit
Operating: 20%-80%
Storage: 10%-90%MTBF
50.000 Stunden, nachgewiesen
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
S-mark, C-Tick, cUL, IC, CCC, CE, VCCI, EK, MIC, NOM, GOST, BSMI, UL, FCC, CB, RoHS, WEEE, IMERC
Montageoptionen
100 mm VESA mount on rear of unit
Bracket mounting on side of unit
See dimensional drawings for detailsOptionen / Peripheriegeräte / Erweiterungen
Austauschkabelsatz - Elo Teilenr: E378229
IntelliTouch Touch-Stift - Elo Teilenr: D82064-000
Elo OSD-Fernbedienung (mit 1,8 m Kabel) - Elo-Teilenr.: E622897
