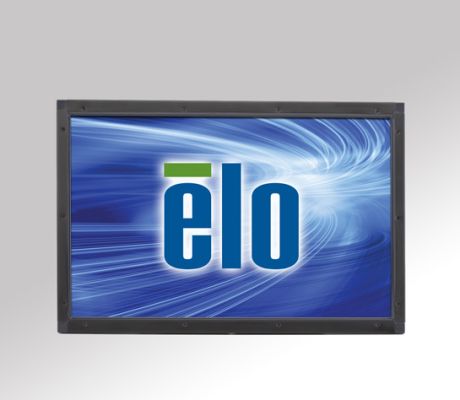

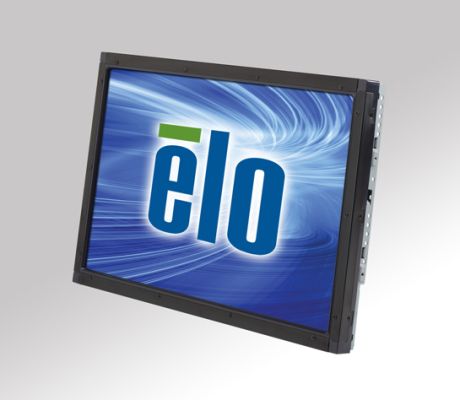

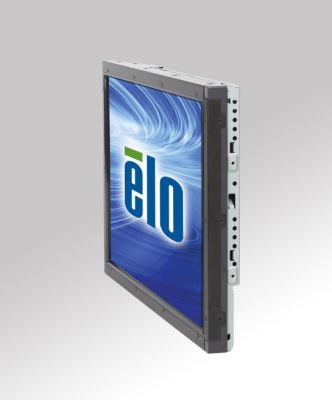

1938L 19" Open Frame Touchscreen (Discontinued February 2016)
Overview
The 1938L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
Like all Elo open-frame touchmonitors, the specifications and tooling are controlled to ensure a long product life, which is important in maintaining continuity for all phases of project rollouts and servicing. The 1938L features an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. Narrow borders, black anodized bezel hardware, multiple mounting options, and dual serial/USB touch interface add to the touchmonitor's flexibility. Worldwide agency approvals cover the entire monitor that is developed, built and supported by Elo TouchSystems, a true single-source supplier.
The 1938L is available with a choice of IntelliTouch surface acoustic wave and SecureTouch surface acoustic wave touch technologies. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.) The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Features
- High quality panel with 160°x160° viewing angle
- 1000:1 contrast ratio
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with water-resistant 0.5 mm seal

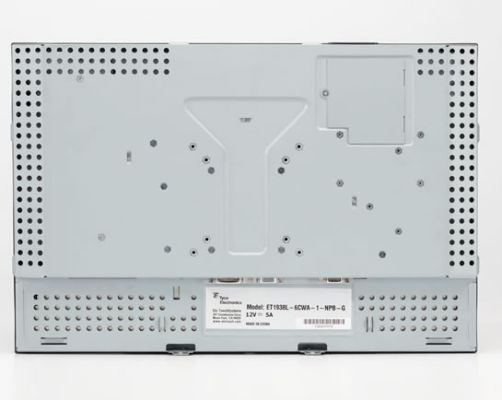

- Mounting options including rear-mount (with two included mounting brackets) and VESA mount
- IntelliTouch or SecureTouch surface wave touch technology with dual serial/USB touch interface. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.)
- Integrated multilingual on-screen display (OSD), connector for optional remote on-screen display (OSD)
- Worldwide agency approvals
- Three year warranty
- 3-D electronic design files available
Merkmale
-
Technische
Artikelnummer(n)
IntelliTouch (Antiglare, Americas, EMEA) - E965017
Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
SAW (IntelliTouch® akustische Oberflächenwelle) – Single Touch
Touch-Benutzerschnittstelle
Dual serial/USB
Bilddiagonale
19 zoll diagonal, Active-Matrix-TFT-LCD (LED)
On-Screen-Display (OSD)
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, French, Italian, German, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
Lockouts: power, user controlsSeitenverhältnis
16:10
Aktiver Bereich
16.1" x 10.0" / 408 mm x 255 mm
Auflösung
1440 x 900 at 60 Hz
Andere unterstützte Auflösungen
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 60, 65 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
640 x 350 at 70Hz
640 x 480 at 60, 66 or 72 HzBlickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
IntelliTouch: 225 nitsReaktionszeit gesamt (typisch)
3.7 msec
Kontrastverhältnis
1000:1
Video-Eingangsformat
Analog VGA, DVI (Asia/Pacific models without DVI)

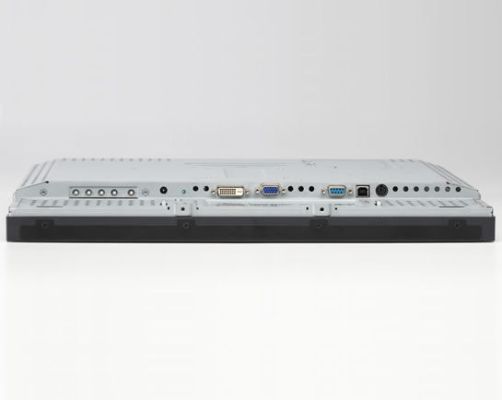

Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type, DVI-D
Stromversorgung
External DC - Optional power brick (sold separately)
Stromanschluss (Monitor)
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Stromanschluss (Netzteil)
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Eingangsspannung
DC: +12VDC ±5%
Eingangsfrequenz
Horizontal: 83 kHz
Vertical: 76 HzStromverbrauch (typisch)
Monitor only: 41.1W
Monitor and power brick: 41.6WAbmessungen
17.5" x 11.7" x 1.9" / 444 mm x 297 mm x 47 mm
Versandabmessungen
21.3" x 6.9" x 15.4" / 540 mm x 175 mm x 390 mm
Gewicht (ohne Verpackung)
10.5 lbs / 4.8 kg
Gewicht (mit Verpackung)
15.2 lbs / 6.9 kg
Betriebstemperatur
0°C to 40°C / 32°F to 104°F
Lagertemperatur
-20°C to 60°C / -4°F to 140°F
Feuchtigkeit
Operating: 20%-80%
Storage: 10%-90%Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Garantie
3 Jahre
Zertifizierungen und Konformitätserklärungen
Worldwide: UL, cUL (Recognized) , TÜV-T Mark, Argentina S, CE, FCC, VCCI, IC, GOST-R Mark, C-Tick (Class B), BSMI, KC, CCC
Montageoptionen
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting bracketsOptionen / Peripheriegeräte / Erweiterungen
Netzadapter- und Kabelsatz für Nordamerika - Elo Teilenr: E005277
Netzadapter- und Kabelsatz für Europa & Korea - Elo Teilenr: E571601
Netzadapter- und Kabelsatz für GB - Elo Teilenr: E180092
Netzadapter- und Kabelsatz für China - Elo Teilenr: E558862
Netzadapter- und Kabelsatz für Taiwan - Elo Teilenr: E818655
Netzadapter- und Kabelsatz für Japan - Elo Teilenr: E182546
Netzadapter- und Kabelsatz für Argentinien - Elo Teilenr: E887099
Elo OSD-Fernbedienung (mit 1,8 m Kabel) - Elo-Teilenr.: E622897Brackets & Bezel Kits
Part number E484257, available at additional cost. Minimum order quantity of 50 sets
Touch/Videokabel
Detachable touch and video cables are included
Optionaler IntelliTouch-Stylus-Stift
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
