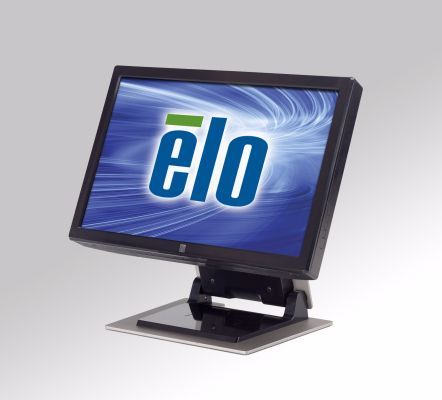

1900L 19-inch Desktop Touchmonitor (Discontinued November 2015)
Overview
Consisting of a glass scratch-resistant touchscreen, the 1900L desktop touchmonitor delivers benefits that combine the ultimate in optical qualities with a stylish, built-for-touch design, developed for use in public environments.
The 1900L is available with IntelliTouch® surface acoustic wave touch technology, a pure-glass touchscreen that provides superior optical performance.
Wide-aspect displays like the 1900L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. The wide-screen format allows extra content on the screen and is quickly becoming preferred in corporate environments for publishing and dual window applications, and is popular in public venue environments due to a high-definition cinematic-like experience.
Typical applications include point-of-sale (POS), point-of-information (POI), point-of-service, interactive digital signage, loyalty systems, kiosk information systems, light industrial shop-floor automation and home control.
Merkmale
-
Technische
Artikelnummer(n)
E619279
E500662Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
Bilddiagonale
19 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Dicke des Bildschirms
11.8" (300 mm)
Seitenverhältnis
4:3
Aktiver Bereich
Horizontal: 16.1" (408 mm)
Vertical: 10.1" (255 mm)Auflösung
1440 x 900 at 60 Hz
Andere unterstützte Auflösungen
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 65 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 or 72 HzBlickwinkel
Horizontal: ±80° oder 160° insgesamt / Vertikal: ±80° oder 160° insgesamt
Farben
16,7 Millionen
Helligkeit (typisch)
LCD panel: 250 nits
IntelliTouch: 225 nitsReaktionszeit gesamt (typisch)
5 msec
Kontrastverhältnis
1000:1
On-Screen-Display (OSD)
Controls (side): menu, up, down, select, power
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, fill screen, color temperature, input video select, OSD H/V position, OSD timeout, recall defaults, sharpness, volume, mute, input video select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsAudio-Eingangsanschluss
3.5mm TRS jack
Kopfhörerausgangsanschluss
3.5mm TRS jack
Lautsprecher
Two 2W internal speakers
Video-Eingangsformat
Analog VGA, DVI video (Asia/Pacific models without DVI)
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin VGA type, DVI-D connector
Stromverbrauch (typisch)
70W
Stromversorgung
Internal AC, Optional external DC (power brick)
Eingangsspannung
AC: 100-240 VAC, 50/60 Hz
DC: 12 VDC ±5%Adapter-Eingangsanschluss
AC: IEC 60320 C6
DC: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)Monitorabmessungen (mit Standfuß)
Width: 17.7" (449 mm)
Depth: 11.8" (300 mm)
Height: 15.0" (380 mm)Versandabmessungen
Width:19.75" (500 mm)
Depth: 23.63" (600 mm)
Height: 10.06" (255 mm)Gewicht (mit Standfuß)
19.9 lb (9.0 kg)
Gewicht (ohne Standfuß)
13.2 lb (6.0 kg)
Versandgewicht (mit Standfuß)
26.8 lb (12.2 kg)
Betriebstemperatur
0°C to 40°C (32°F to 104°F)
Lagertemperatur
-20°C to 60°C (-4°F to 140°F)
Feuchtigkeit
Operating: 20%-80%
Storage: 10%-90%Siegelfähigkeit
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF
50.000 Stunden, nachgewiesen
Standbewegungsoption
Tilt, remove, adjust height, pivot (landscape/portrait mode)
Montageoptionen
100 mm VESA mount
Threaded-through mounting holes, under standWeitere Merkmale
Security lock receptacle
Garantie
2 Jahre
