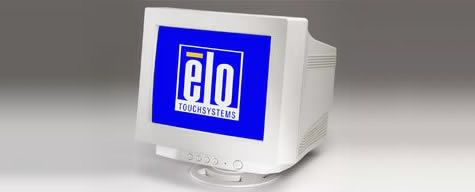

1525C 15" CRT Touchmonitor (Discontinued November 2004)
Overview
Delivering the best possible optics on a touch CRT, there is nothing better than the unique Elo IntelliTouch® ZB touch-on-tube technology. No overlay means 100% of the brightness, picture quality, and color purity are preserved, with up to 80% less reflection than the competition. The touch is super sensitive, drift free and extremely precise as you are touching even closer to the image. If you want a touch CRT, you need to look no further.
Features
- Our lowest cost touchmonitor
- Unique IntelliTouch ZB touch-on-tube technology preserves 100% of the original picture quality
- Digital on-screen display (OSD) with lockout function for public use
- Power Save function
- Rigid (removable) base
- Innovative touchscreen sealing
- Worldwide agency approvals
Merkmale
-
Technische
Artikelnummer(n)
AccuTouch (Antiglare, Worldwide) - 748998-000
AccuTouch (Antiglare, Worldwide) - 630062-000
IntelliTouch ZB (Antireflective, Worldwide) - 396036-000
IntelliTouch ZB (Antireflective, Worldwide) - 634572-000Gehäusefarbe
Schwarz
Touchtechnologie & Leistung
5-Draht-Widerstandstechnologie (AccuTouch®) - Single-Touch
SAW ZB (IntelliTouch® akustische Oberflächenwelle) – Single TouchBilddiagonale
15 zoll diagonal, Active-Matrix-TFT-LCD (LED)
Dicke des Bildschirms
15.2" (385 mm)
Seitenverhältnis
4:3
Aktiver Bereich
Horizontal: 10.2" (260 mm) Vertical: 7.7" (195 mm)
Auflösung
800 x 600 at 85 Hz
Andere unterstützte Auflösungen
1024 x 768 at 60, 70, 75, or 85 Hz
800 x 600 at 60, 72, 75, or 85 Hz
640 x 480 at 60, 72, 75, or 85 HzFarben
16,7 Millionen
Dot Pitch
0.28 mm
Kontrastverhältnis
300:1
Touch-Benutzerschnittstelle
Serial: 748998-000, 396036-000
USB: 630062-000, 634572-000On-Screen-Display (OSD)
Digital OSD with lockout capability
Video Bandwidth
67 MHz
Video-Eingangsformat
Analog (no proprietary video card needed)
Video-Eingangssignalanschluss
Mini D-Sub 15-Pin (female)
Video-Eingangsfrequenz
Analog (no proprietary video card needed)
Stromverbrauch (typisch)
70 W max.
Stromversorgung
90-264 VAC, 50-60 Hz
Eingangsfrequenz
Horizontal: 30-70 kHz Vertical: 50-160 Hz
Monitorabmessungen (ohne Standfuß)
Width: 14.3" / 362 mm
Monitorabmessungen (mit Standfuß)
Height: 12.9" / 328 mm
Depth: 15.2" /385 mmGewicht (ohne Verpackung)
29 lbs / 13.0 kg
Gewicht (mit Verpackung)
33 lbs / 15.0 kg
Betriebstemperatur
0°C to 40°C
Lagertemperatur
-40°C to 60°C
Feuchtigkeit
Operating: 10% to 90%
Storage: 10% to 90%
noncondensingMTBF
50.000 Stunden, nachgewiesen
Montageoptionen
Rigid (removable) base
Weitere Merkmale
VESA DDC 1/2 B Plug and Play
Garantie
2 Jahre
Zertifizierungen und Konformitätserklärungen
UL, cUL, FCC, CE, CISPR22 Class B, TÜV-GS, MPR II (ITE per IEC/EN 60950)
Stromkabel
A North American power cable and a European power cable are included.
For touchmonitors being shipped to the United Kingdom, add a UK power cable at no cost by specifying part number 276875-000Touch/Videokabel
Detachable touch and video cables are included.
